JBL SLP12/T SLP14/T 壁挂音箱 影院音响

JBL SLP12/T SLP14/T 壁挂音箱 影院音响,适合嵌入式 造型美观功率较大

产品详情

SLP12/T性能

频率范围 (-10dB) 90 Hz – 20 kHz
频率响应(±3 dB) 110 Hz – 15 kHz
额定功率 60 W Continuous Program (2 hrs)
30 W (160 W Peak), Continuous Pink Noise (2 hrs)
20 W (80 W Peak), Continuous Pink Noise (100 hrs)

灵敏度

84 dB (80 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 105 dB peak (99 dB continuous, 2 hr) @ 1m
覆盖范围 130° horizontal x 130° vertical
Directivity Factor (Q) 6.1
Directivity Index (DI) 7.8 dB
标称阻抗 8Ω (at 8Ω tap setting)

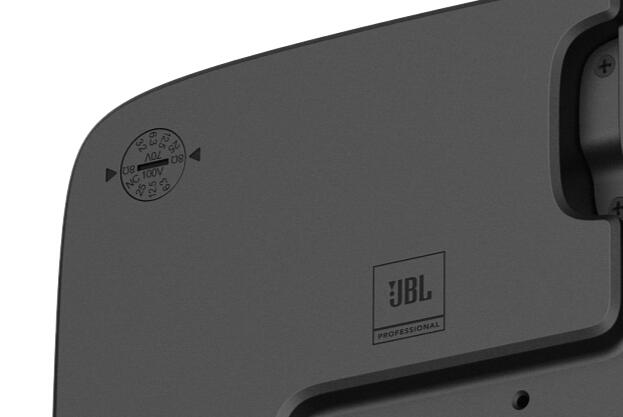

变压器抽头 70V: 15 W, 7.5 W, 3.8 W, 1.9W
100V: 15 W, 7.5W, 3.8W
驱动单元 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton™ voice coil former
Terminals Terminals 4-pin Euroblock connector for bare wire
音箱材料 Polycarbonate + ABS, UL94V-0 flammability rated
颜色 Black or white

尺寸

248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
净重量 2.1kg (4.6 lbs.)

随附配件

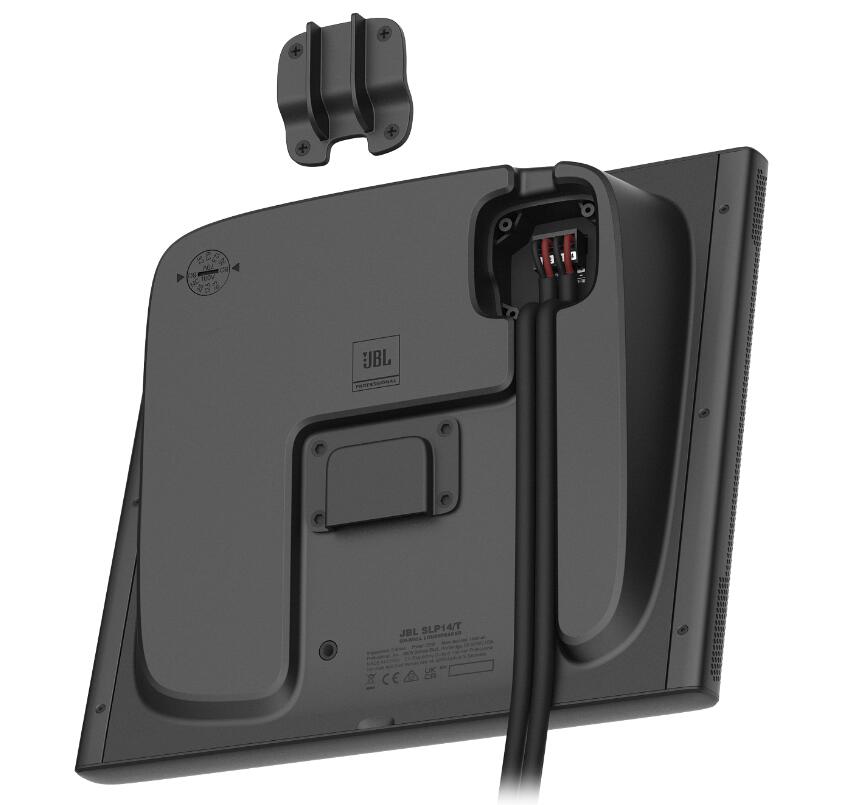

Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.

SLP14/T性能

频率范围 (-10dB) 85 Hz – 20 kHz (on wall)
频率响应(±3 dB) 105 Hz – 17 kHz (on wall)
额定功率 90 W Continuous Program (2 hrs)
45 W (180 W Peak), Continuous Pink Noise (2 hrs)
30 W (120 W Peak), Continuous Pink Noise (100 hrs)

灵敏度

86 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Maximum SPL 108 dB peak (102 dB continuous, 2 hr) @ 1m
覆盖范围 140° horizontal x 140° vertical
Directivity Factor (Q) 6.0
Directivity Index (DI) 7.7 dB
标称阻抗 8Ω (at 8Ω tap setting)
变压器抽头 70V: 25 W, 12.5 W, 6.3 W, 3.2W
100V: 25 W, 12.5 W, 6.3 W
驱动单元 100 mm (4 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 1” silk-dome tweeter with neodymium magnet with aluminum former
Terminals 4-pin Euroblock connector for bare wire
音箱材料 Polycarbonate + ABS, UL94V-0 flammability rated
颜色 Black or white

尺寸

286mm W x 263mm H x 100mm D (11.3 x 10.4 x 3.9 in)
净重量 2.8kg (6.2 lbs)

随附配件

Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use
